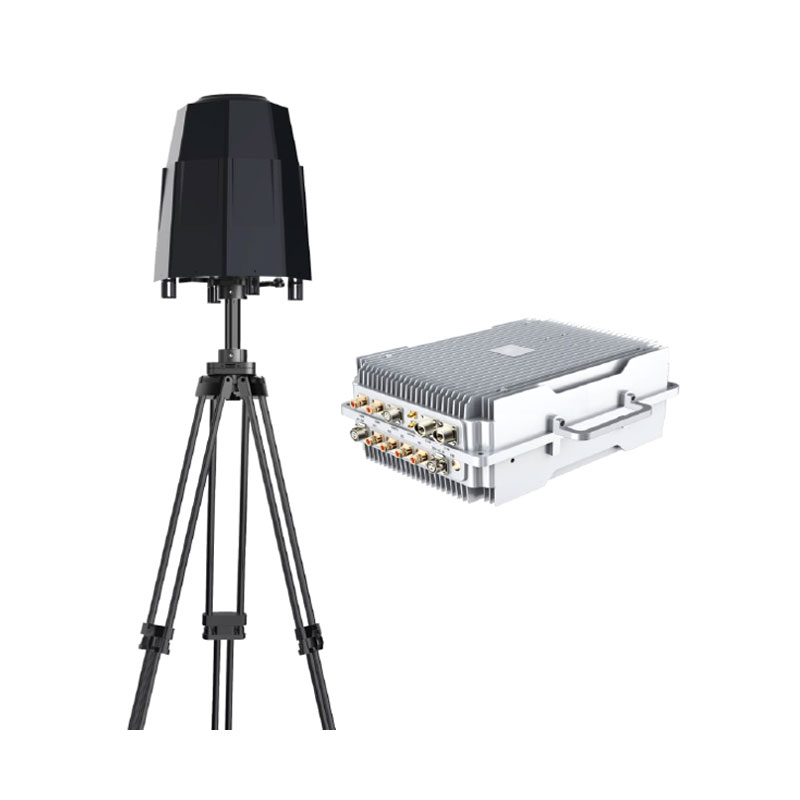

Radio Detection and Interference System

Product Introduction

Radio detection and interference system contain both detection system and interference system, two can be used in conjunction with each other. When the detection device detects a suspicious RF target, it will automatically trigger the targeted interference countermeasures of the jammer device.

Detection system:

This system adopts RF passive detection method, with the characteristics of ultra-long-distance detection, black and white lists, accurate identification, etc. It can provide a variety of software interfaces and integrate various types of equipment, such as: GPS navigation guidance equipment, high-power jammers, jammers, radars, spectrum equipment, optoelectronic equipment, etc.

Interference system:

This system is designed to detect and jam UAVs and drones from a distance. It is equipped with 2-6pcs Omni Antennas with a power consumption of 150W. It covers a wide range of frequencies, including GPS L1, L2, WiFi 2.4G, 5.2GHz, 5.8GHz and more. The system is lightweight and portable, with a weight of only 50kg. With its powerful jamming capabilities, it is ideal for any commercial or military application where UAV Detection and Drone Jamming is required.

Radio Detection and Interference System Product Features

Detection system:

1. Passive detection characteristics, only receiving radio signals, not emitting any interference signals.
2. Meet the requirements of the transmission power of 10mw or less in the "Petroleum and Petrochemical System Security Counterterrorism Prevention Requirements Part 1: Oil and Gas Field Enterprises" (GA1 551.1-2019).
3. Can be seamlessly integrated with GPS navigation decoy equipment.
4. Effective detection distance 5-10km.
5. Can be used in major hazardous source sites of petroleum and petrochemicals such as oil reserves, gas storages, purification plants, and joint stations, effectively preventing major safety accidents such as fires and explosions caused by collisions and crashes caused by illegal drones.
6. Green and interference-free, no impact on the surrounding environment such as wifi, Bluetooth, and aircraft.
7. Directional function.

Interference system:

UAV Detection/UAS Detection: Available
Jamming Frequency: GPS L1, L2, WiFi 2.4G, 5.8G
Humidity: 5%-95%
Operating Temperature: -20℃~+60℃
Cooling System: Built-in Cooling Fan
Drone Jamming: Available

Radio Detection and Interference System Technical Specifications

Detection system:

1. Detection method: RF passive automatic detection, no electromagnetic radiation
2. Detection range: 360-degree all-round coverage without blind spots
3. Lateral accuracy: ≤9°RMS
4. Advanced warning: Early warning, the drone is turned on, and the target can be detected and found immediately, and the alarm is linked
5. Detection distance: Under ideal conditions, it can detect models such as DJI Mavic 2 and Phantom 4 Pro at a distance of 10 kilometers from the antenna
6. Identify drones: Identify drone electronic fingerprints, distinguish drones of the same brand and model, and identify whitelisted drones
7. Support drone types: DJI full series, 3DR, Parrot, support Futaba and other 11 mainstream DIY remote controls. Enhanced detection can identify more devices

Interference system:
