High Power Vehicle-Mounted Intelligent lED Jamming System

Introductions

The High Power Vehicle-Mounted Intelligent lED Jamming System is a vehicle mounted very high power Intelligent System designed for blocking remote controlled improvised explosive devices (RCIED) Used by terrorist.

The System is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.

The System is using intelligent jamming technology for maximum jamming efficiency.

Jamming radius of the System depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.

The System allows flexible usage in different applications. The system use Broadband Omni-Directional antennas for 360 degrees protection.

Features

● Maximum coverage range of 20 to 6000MHz
● High efficient RF output power, long jamming radius
● Intelligent Jamming for high efficiency
● Continuous and simultaneous jamming
● Slow start up design of circuit to make the device work stably
● Perfect Self Protection: Over Heat protection, Over current protection, High Voltage and low Voltage protection, VSWR protection
● Easy operation, using Wire Control Panel and Windows software to monitor the system
● Designed to block wireless communication including Remote Control, Satellite, GPS, WIFI, WIMAX, etc
● Modules of Jammer operates separately;
● Power Amplifier separate switch ON/OFF and switch operation Modes control for each frequency band;
● Shock Absorber design to protect the device from damage because of high speed driving;
● PTO Generator UPS system can support the IED Jammer to work long time
● Special antenna design and configuration with increased gain to enhance coverage distance.

Applications

VIP Protection
EOD Operations
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc
Risk mitigation and explosives removal in specified spots
Electronic countermeasure
Anti drug, Anti-Drone / UAV, Riot Control, Border control, etc

Technical Specifications

RF Characteristics:

Total Antenna RF Output Power: 1400W
Jamming Frequency range: 20-6000MHz
Jamming distance: 50 to 500 meters radius depending on the several conditions such as transmitter
frequency and output power, distance to receiver, and obstacles between, etc. Signal Source: Intelligent Jamming Technology
Power Supply: 220VAC/28VDC
Power consumption: 4500W

Power Amplifier Protectors:

A. Over- Heat protection - Thermal protector
B. Over current protection
C. High input Voltage and low Voltage protection
D. VSWR protection: against antenna miss-match including open and short circuit

Cooling: Heat sink and air forced fans

Physical Data:

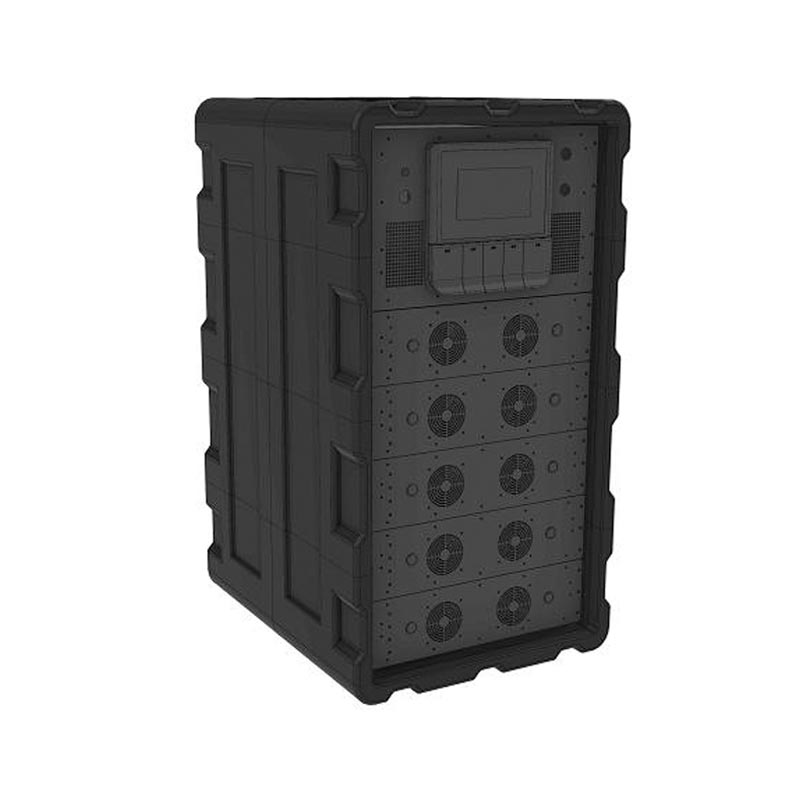

Main Host Dimensions: 696×572×1060mm per pcs, total 2pcs
Main Host Net Weight: Approx. 150kgs per pcs, total 300kgs
Environment of operation:
Operating Temp: -10ºC - +55ºC
Humidity: 5% - 90%
Proof Level: IP54
Environment of operation
Operating Temperature: -10ºC - +50ºC
Humidity: up to 90%

Remote Control:

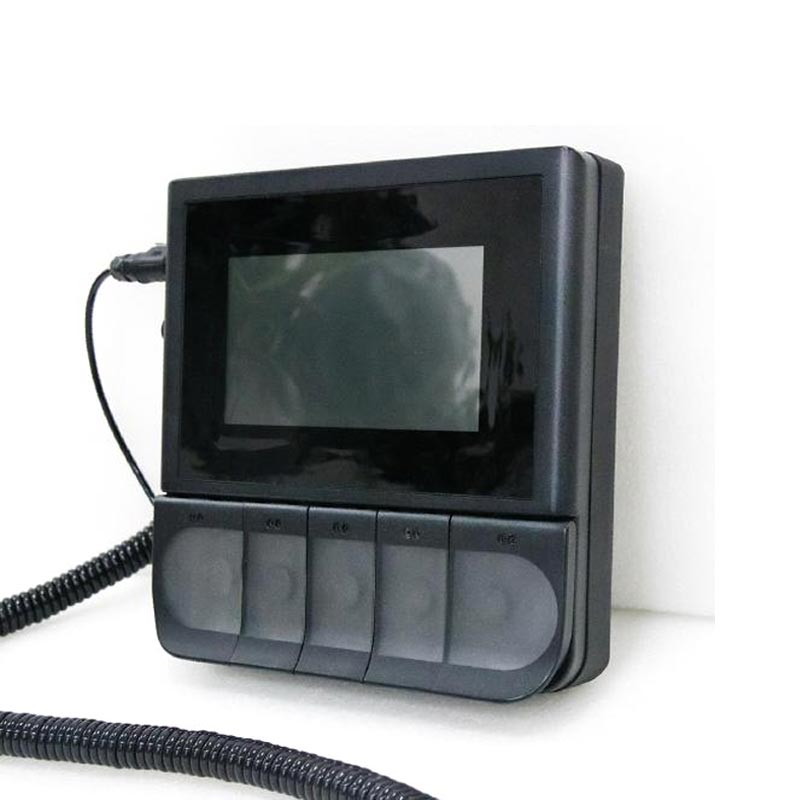

Wire Control Panel Available:

A. Output power Indication
B. Output power adjusting
C. Output power on/off per band

Remote Control Interface: RJ45 / RS485

Jamming Power Division:

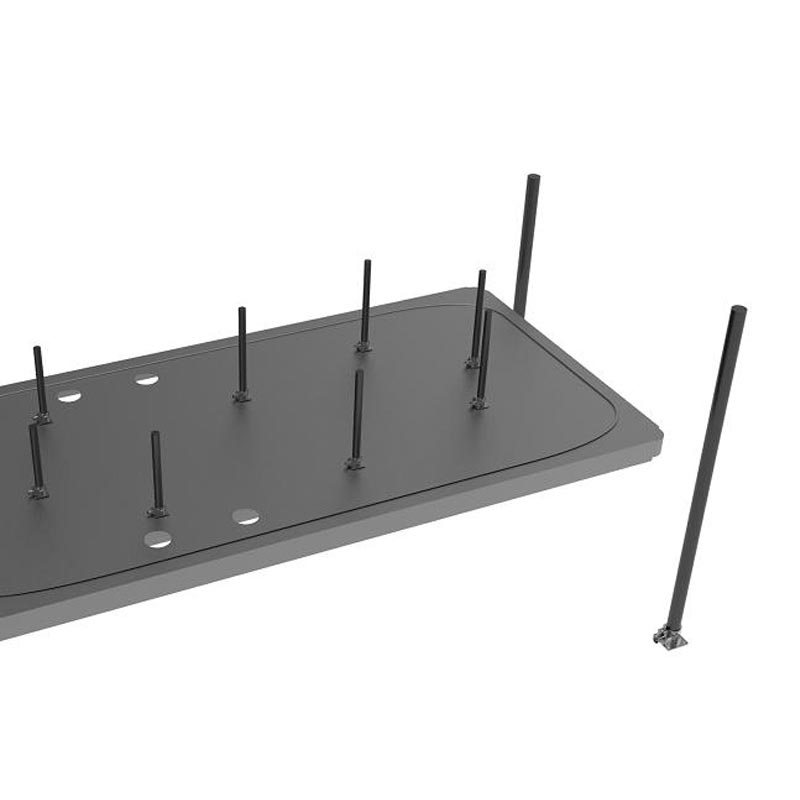

Antennas

Antenna type: Omni Antenna
Antenna quantity: 15pcs

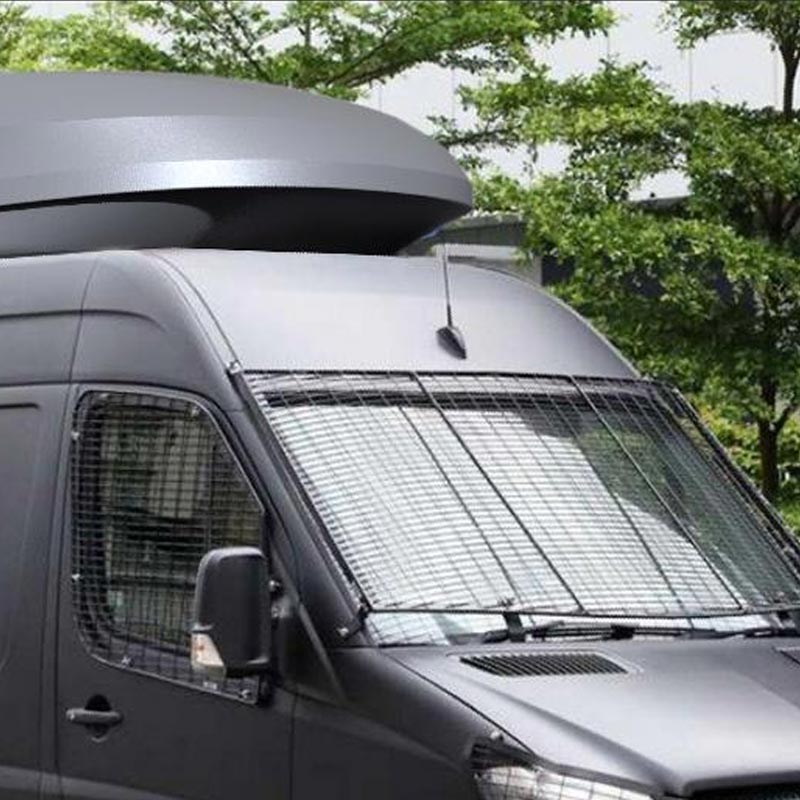

Antenna Installation: 13pcs Antennas installed inside the Roof Container, 2pcs Antennas
installed outside.

Antenna Features:

Omni Antenna for 360 degree coverage and protection;
Good VSWR features with High efficiency;
Shockproof and waterproof design;

Antenna Technical Parameters
