Anti-Drone Gun

Specifications

Product Description:

Portable Anti-Drone Gun

The portable Anti-Drone Gun is against the widespread use of UAVs nowadays. It disables the targeted UAV by jamming the 300MHz~6GHz signal, so as to force the UAV to fall or return. The jamming distance reaches more than 800 meters.

Equipment overview

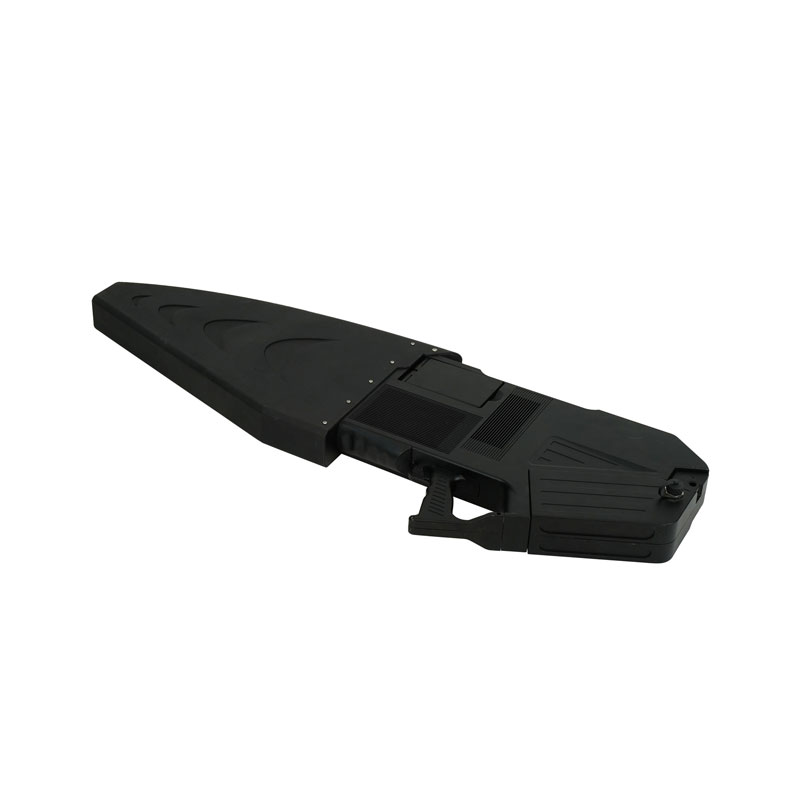

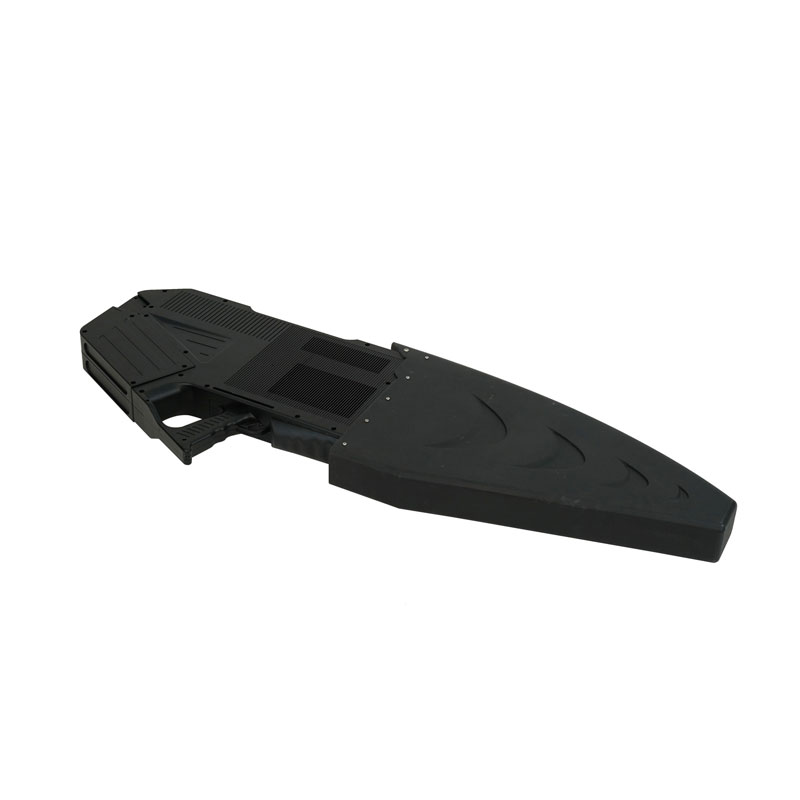

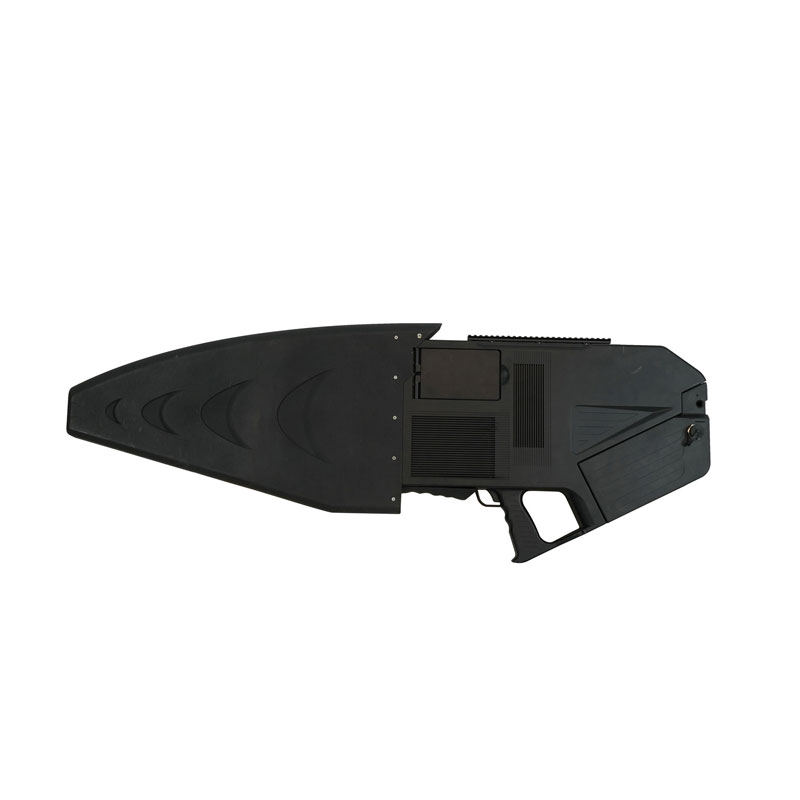

[1]. Display of whole

①.lead rail:Mounting position of sight
②.Button of the equipment power switch:Press the button after 1 seconds and press 3 seconds to turn on the power supply of the equipment.
③,④.Hanging ring of braces:Mounting position of gun braces
⑤.Gun buckling machine:Press to open and close the current frequency band
⑥.Liquid crystal display:This screen allows you to set parameters
⑦.Charging socket:Use a matching charger to recharge the equipment at this port

[2]. Control part of equipment

Main interface menu

①.Setting key:After clicking, you can enter the settings selection interface
②.5.8GHz / 1.5GHz band mode:Pointer to this position indicates current 5.8 GHz/ 1.5GHz band mode
③.2.4GHz / 1.5GHz band mode:Pointer to this position indicates current 2.4 GHz/ 1.5GHz band mode
④.User-defined band mode:Pointer to this position indicates current User-defined band mode
⑤.Setting key of the 5.8GHz / 1.5GHz band mode:Click and then pull the gun trigger to open the 5.8G and 1.5G bands
⑥.Setting key of the 2.4GHz / 1.5GHz band mode:Click and then pull the gun trigger to open the 2.4G and 1.5G bands
⑦.Setting key of the User-defined band mode:Click and then pull the gun trigger to open the User-defined band mode(Note: up to 4 bands can be opened at the same time)
⑧.Power display icon:Display of battery power
⑨.The indicating position of the detection alarm:Pointer to this position indicates current device detection exception
⑩.The indicating position of the standing wave alarm:Pointer to this position indicates current device standing wave alarm
⑪.The indicating position of the temperature alarm:Pointer to this position indicates current device temperature alarm
⑫.The indicating position of the normal operation condition:Pointer to this position indicates that it is currently in normal working state
⑬.Graphical indication of working temperature:Displays the temperature value of the device when it is currently working
⑭.Numerical indication of working temperature:Displays the temperature value of the device when it is currently working

Setting interface

⑮.Setting key of the User-defined band mode:After clicking, enter the frequency band settings interface
⑯.Setting keys for sound and vibration:After clicking, enter the sound and vibration settings interface
⑰.Icon of the Return to the main interface menu:After clicking, return to the main interface menu interface

Interface of the frequency band settings

⑱.Setting keys for opening and closing frequency bands: First, when clicked, the“ ON ”icon is turned on and the“ OFF” icon is turned off,Then click to save, return to the main interface, and then press the button machine, you can open the current set of frequency band
⑲.Icon of the Return to the main interface menu:After clicking, return to the main interface menu interface
⑳.Icon of the save band settings:After clicking, save the current set of frequency band

Setting interface of the vibration and sound

㉑.Sound setting button:When clicked, the ON icon is turned on and the OFF icon is turned off
㉒.Vibration setting button:When clicked, the ON icon is turned on and the OFF icon is turned off
㉓.Icon of the Return to the main interface menu:Same as ⑰
㉔.Save the current settings button:After clicking, save the current settings for sound and vibration

Features

● UHF wideband interference technology
● High effective power (channel power) and long interference distance
● Effective segmentation to jamming each signal segment of UAV.
● Imported chips, high integration and stability,slow start circuit design can avoid the mechanical switch fire phenomenon.
● Perfect self-protection function: when the equipment overheating, output power, standing wave and other fault alarm, the shield will automatically turn off the emission frequency band to avoid damage to the shield.

Application

Primarily utilized in high-security environments such as prisons, airports, scientific research facilities, detention centers, interrogation rooms, courthouses, labor camps, and various vital military locations, our solution effectively prohibits the use of unmanned aerial vehicles (UAVs) for aerial photography.

Technical parameters

Accessory description

Accessories include mainframe ,AC 220V to DC-48V charger, sight, gun straps and instructions.

Diagram of whole

Accessory details

How to use

Step 1. Open the packing box

Open the box. Keep the unpacked case ready for future removal or shipment.
Check that the open equipment and fittings are in good condition. If any defects or damage are found,please contact your supplier as soon as possible.

Step 2. Use of equipment

Make sure the transmitter is fully powered before each use.
1, Short press 1 seconds long press 3 seconds switch button to open equipment power supply.After the screen displays the main interface, the equipment enters the standby state, and the next step is to set the frequency band mode(For details, please refer to the LCD control section);
2, When the UAV is discovered, raise the equipment to aim at the UAV,
pull the trigger, and launch the shield signal.

Step 3. Closure of equipment

1, Pull the trigger, stop launch the shield signal
2, Short press 1 seconds long press 3 seconds switch machine button can close the equipment power supply,At this time the screen darkens and the switch button lights out.(It needs to be used in a short period of time, and the power supply of the equipment can not be turned off.)

Step 4. Protection of equipment

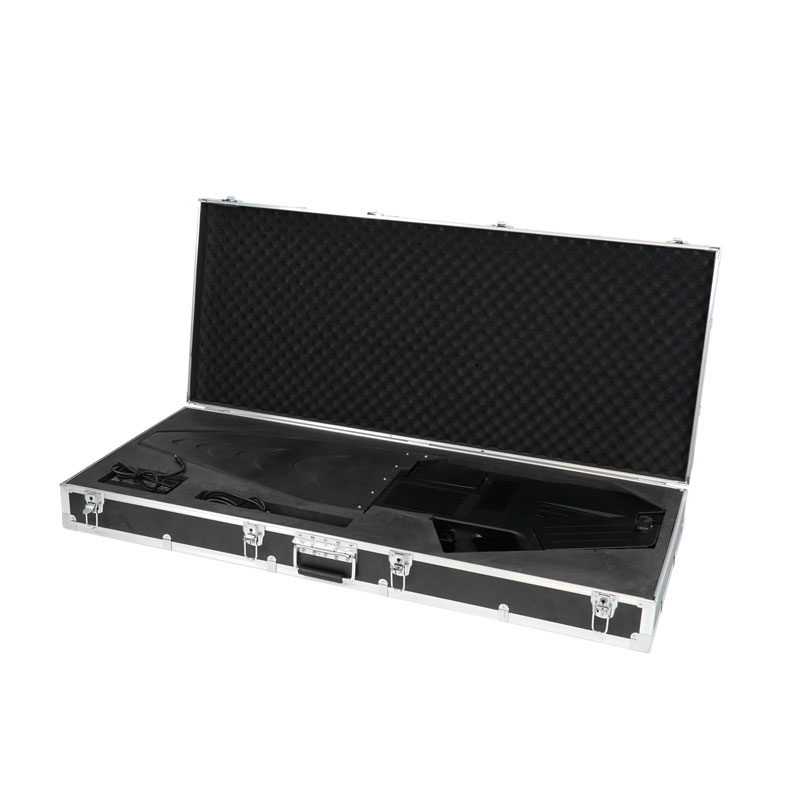

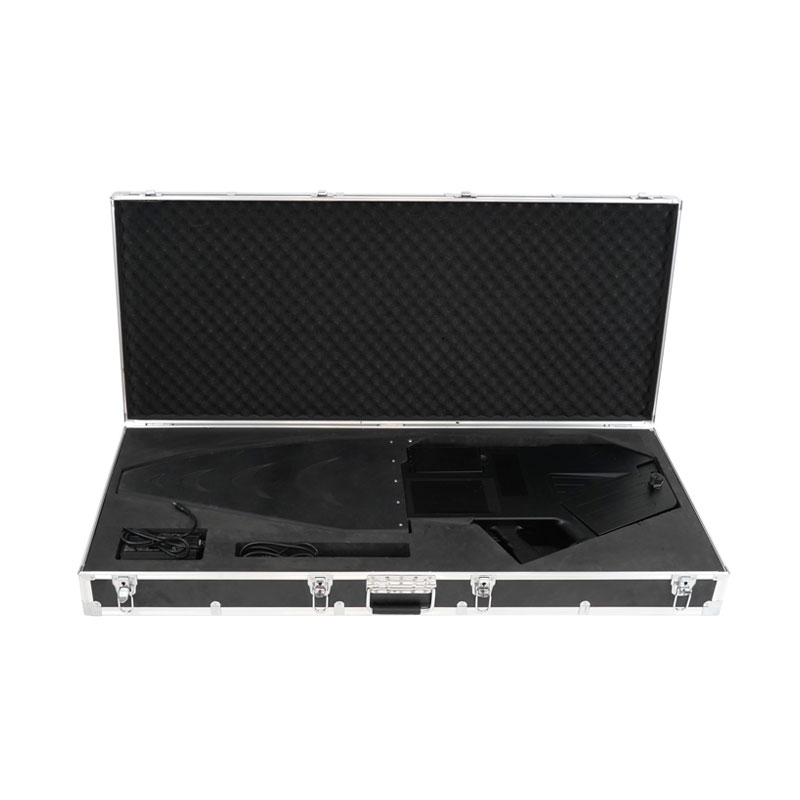

1, Please put it in a special protective safety box when not in use or in transit.
2, When the use is over, remember to charge and reserve.

Matters for attention

1. The signal launcher should be directed towards the UAV.
2. Remember to open up to four bands at the same time in user-defined band mode
3. When using the shield outside, we should pay attention to waterproof and fire proof, do not put the machine in the wet, 4.high pressure, high temperature, strong magnetic field environment
4. If the equipment does not work properly, please contact the local dealer, do not remove themselves, repair
5. Any artificial damage and malfunction caused by bad operation, the dealer can not provide free repair.
