10 Channel Manpack Signal Jammer
Xinmeng, a renowned manufacturer of 10 channel manpack signal jammer in China, strives relentlessly to deliver premium-quality products and comprehensive post-sales support to our esteemed clients. Below, we delve into the intricacies of our 10 channel manpack signal jammer, which is designed to meet high standards. Should you harbor any curiosity or interest in this innovative product, kindly do not hesitate to reach out to us.
Send Inquiry
Product Description
10 Channel Manpack Signal Jammer Details
Performance Parameters
System Features
● Third-gen jammer framework employing latest SDR for stronger and more reliable jamming performance in urban area with high cellular signal power.
● System targets downlink transmission only; local mobile network base station operations are not impeded.
● Active signal suppression triggered from a wired controller w/ display.
● Internal 33.6 V Battery
● Comprehensive safe electronic design: slow start-up circuit, stable integrated layout, protection against overheating, output under/overpower, and standing wave.
● Compact design in a rugged and mobile manpack format.
System components
● Manpack Jamer
● Wired controller
● Omnidirectional antennas * 4
● RF coaxial cables
● AC 220 to 240 V power adapter
● DC 12 to 24 V power adapter
Internal Specification
System suppression range: 30 - 300 m, dependent on local signal strength, terrain, and choice of antenna
Internal RF specification:
| Designation | Frequency (MHz) | Tx Power (dBm, ±2) | Antenna # |
|---|---|---|---|
| Channel 1 | 130–180 | 43 | CH1 |
| Channel 2 | 420–480 | 43 | CH4 |
| Channel 3 | 750–803 | 43 | CH3 |
| Channel 4 | 850–894 | 43 | |
| Channel 5 | 1930–1990 | 42 | CH2 |
| Channel 6 | 2110–2180 | 42 | |
| Channel 7 | 2400–2500 | 42 | |
| Channel 8 | 2500–2690 | 42 | |
| Channel 9 | 3300–3800 | 42 | |
| Channel 10 | 5150–5850 | 42 |
Internal battery specification:
| Rated Voltage | 33.6 V |
| Rated Current | 10 A |
External Specification
| Manpack dimensions | 47×35×20 cm |
| Manpack net weight | ≤ 18 kg |
| Ingress protection rating | IP 54 |
| Operational temperature | -10 ~ 45°C |
| Operational humidity | 5 ~ 80 % |
| Power requirement | 110 - 220 V AC |
| Power consumption | ≤ 550 W |
| Control interface | Wired controller keypad |

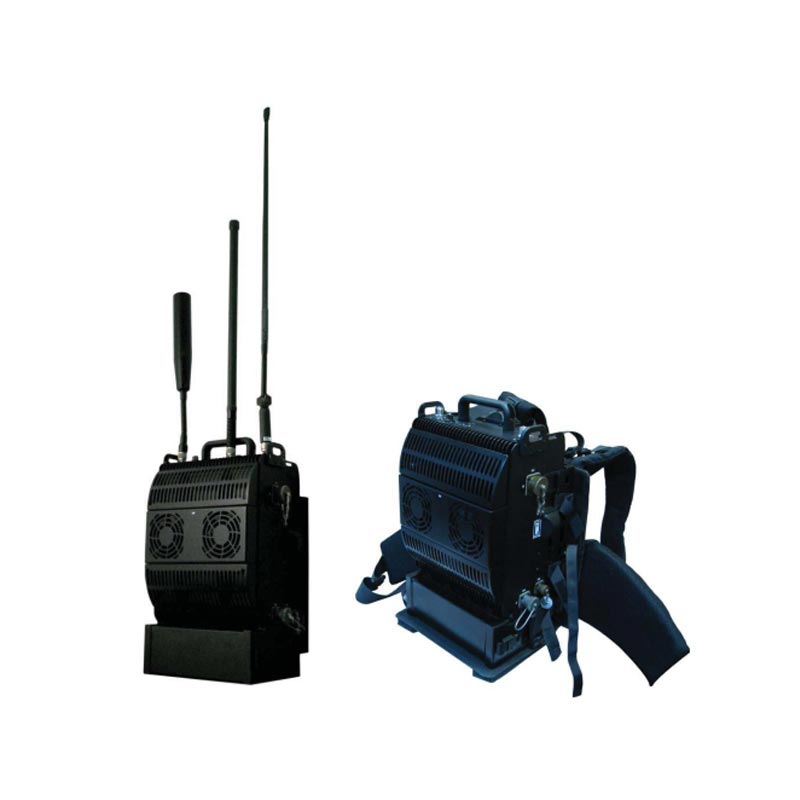

APPENDIX (Picture for illustration purpose only)
