Logo Military Pe Silicon Polyester Ballistic Plates

Product Description

NIJ STANDARD THREAT LEVELS

IIA

.40 S&W 9mm
II

9mm .357 Magnum
IIIA

.357 sig .44 Magnum
III

7.62FMJ (FULL Metal Jacket)
IV

.30cal Steel Core Armor Piecing

Logo Military Pe Silicon Polyester Ballistic Plates Details

Performance Parameters

Bulletproof insert
Preface	Category	Picture	Technical parameters

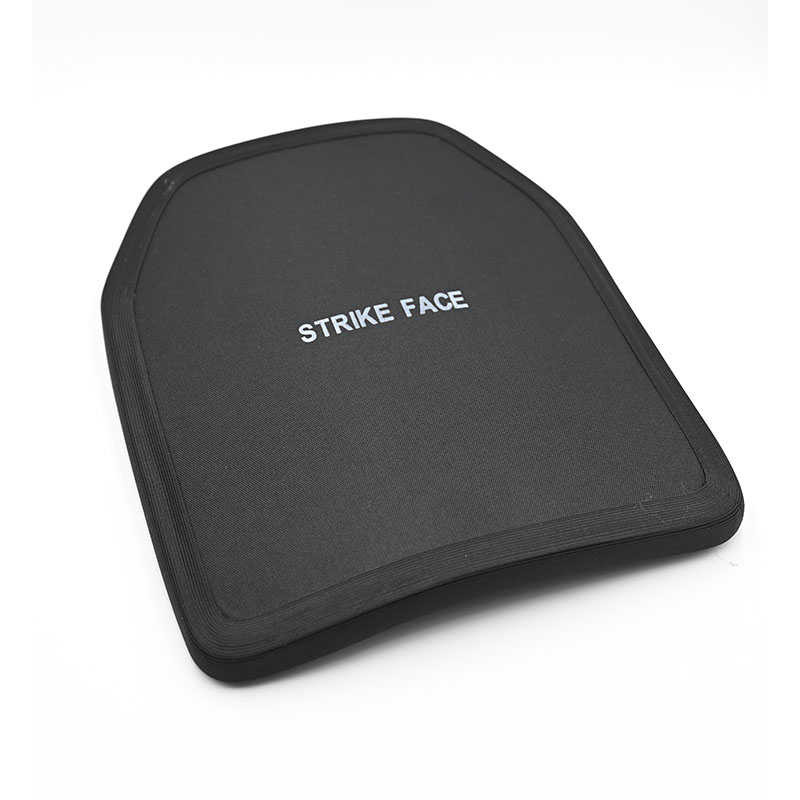

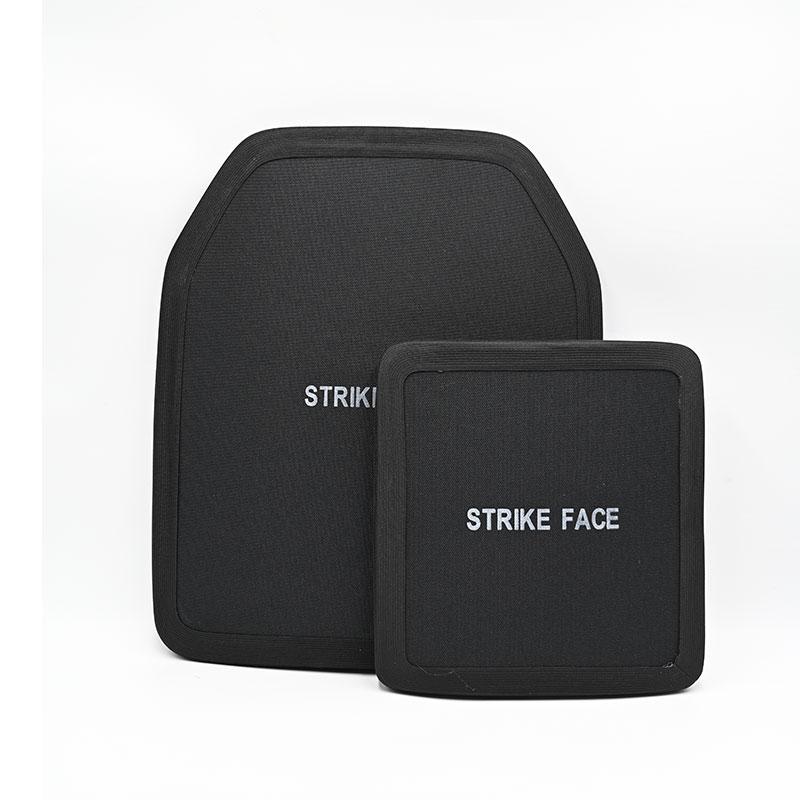

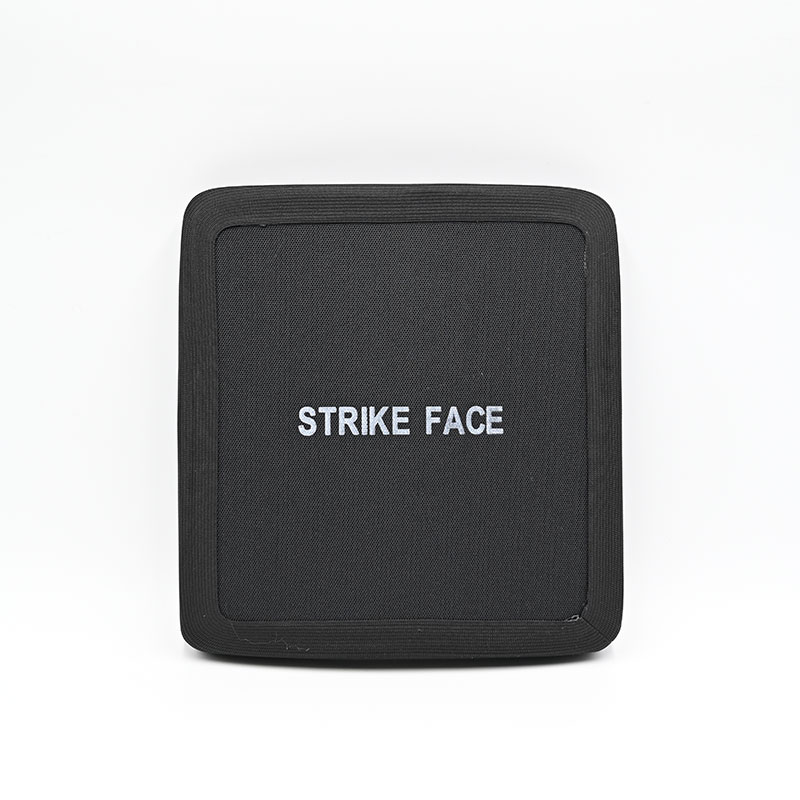

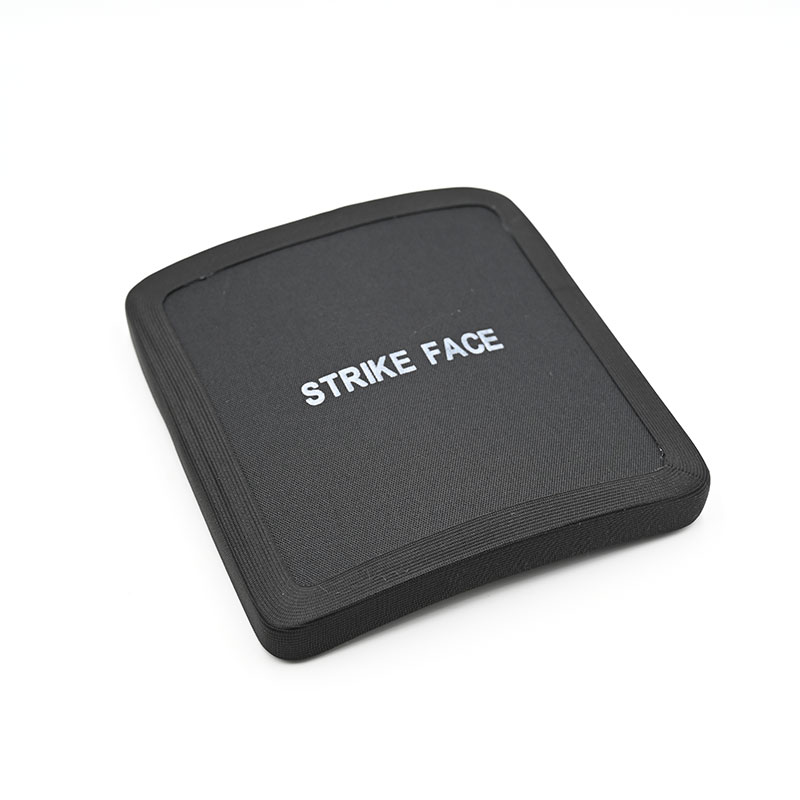

1	Bulletproof insert-PE		Product name	PE bulletproof chest plate (PURE PE PLATE)
			Bulletproof material	Ultra-high molecular polyethylene (PE)
			Color	Black, military green, camouflage, customizable
			Dimensions	250*300mm	250*300mm	250*300mm
			Bulletproof area(㎡)	0.07㎡	0.07㎡	0.07㎡
			Thickness(mm)	6.5±0.5mm	14.5±0.5mm	22±0.5mm
			Bulletproof level	GA3	GA4	GA5
			Weight KGS	0.50±0.05KG	1.05±0.05KG	1.55±0.05KG
			Execution standards	"GA141-2010 Police Body Armor"
			Spray painting process	Wrapping cloth or polyurea
			Delivery	Determined based on order quantity
			Performance introduction	•Single curve design fits ergonomics; •Choose 100% polymer polyethylene bulletproof material to provide a more lightweight solution; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board.
2	Bulletproof insert-alumina		Product name	Composite bulletproof chest plate-alumina ceramic (Alu+PE)
			Bulletproof material	Ultra-high molecular polyethylene (PE) + alumina AL2O3 ceramic sheet
			Color	Black, military green, camouflage, customizable
			Dimensions	250*300mm	250*300mm	250*300mm
			Bulletproof area(㎡)	0.07㎡	0.07㎡	0.07㎡
			Thickness(mm)	18mm	22mm	16mm
			Bulletproof level	GA5 (10+8)	GA6 (10+10)	95 rifle (10+6)
			Weight KGS	2.40±0.05KG	2.75±0.05KG	2.00±0.05KG
			Execution standards	"GA141-2010 Police Body Armor"
			Spray painting process	Wrapping cloth or polyurea
			Shelf life	8 years
			Delivery	Determined based on order quantity
			Performance introduction	•Single curve design fits ergonomics; •Ultra-high molecular polyethylene PE + alumina AL2O3 ceramic sheets can provide a higher bulletproof level; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board.
3	Bulletproof insert-silicon carbide		Product name	Composite bulletproof chest plate-silicon carbide ceramic (Sic+PE)
			Bulletproof material	Ultra-high molecular polyethylene (PE) + silicon carbide SIC ceramic sheet
			Color	Black, military green, camouflage, customizable
			Dimensions	250*300mm	250*300mm	250*300mm
			Bulletproof area(㎡)	0.07㎡	0.07㎡	0.07㎡
			Thickness(mm)	18mm	22mm	16mm
			Bulletproof level	GA5 (10+8) solo defense	GA6 (10+10) solo defense	95 rifle (10+6)
			Weight KGS	2.10±0.05KG	2.40±0.05KG	1.70±0.05KG
			Execution standards	"GA141-2010 Police Body Armor"
			Spray painting process	Wrapping cloth or polyurea
			Shelf life	8 years
			Delivery	Determined based on order quantity
			Performance introduction	•Single curve design fits ergonomics; •Selecting ultra-high molecular polyethylene PE + silicon carbide SIC ceramic sheets can provide a higher bulletproof level; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board.
